Eagle 2 Web Solar Control - 20 Amp with conduit holes for permanent wiring. Model E2W1-2000-DBIP *Out of Stock*
   Model: E2W1-2000-DBIP
Eagle 2 Web Solar Control - 20 Amp with conduit holes for permanent wiring. Model E2W1-2000-DBIP *Out of Stock*
CLICK dropdown arrow in selection boxes to
    configure product and determine total cost.

Base Price:  $312.12
    Data Logging Software:
    Shipping based on delivery destination:
        For Shipments Outside of the Contiguous US please Contact Us for a Quote
            Optional Installation Services
            Tell Someone About This Great Deal!
            Found a lower price? Let us know![?]
This Item Is Currently Out Of Stock
Processing: 1-2 Business Days
Plus Transportation Time

    Eagle Energy Meter and Solar ControlEagle 2 Web Solar Control

    Drainback / Pressurized - Temperature Limited Differential Controller with Isolated Serial Port

    Model E2W1-2000-DBIP
     20 Amp
    With conduit holes for permanent wiring

    Connect to the Web:
    Connect the Eagle solar temperature controller to Wired Solar for real-time Killowat hours and BTU monitoring to measure system performance and on-the-spot remote troubleshooting.

    Connect to Computer:
    An optional stand-alone PC based software package is also available; the Solar BTU Log can be installed in a local computer and connect to collector using using Adapter #SOLR-DA10 to monitor data log in graphical form and long-term data collection.

    Temperatures, pump activity and totalized Btus are transmitted in "real-time" to a computer or the web for a trend graph including calculated BTUs or kilowatts that are displayed in hours for remote or later viewing.

    *Wired Solar services are not included in price.

     Eagle 2 Web Solar Control Features
    Microprocessor accuracy and dependability with ambient
       operation from -10 to 120 F
    Large easy-to-read 40 character (20x2) backlit LCD display
       showing every parameter measured and Controlled by the
    PC Data Port with 2500 volt isolation for use with optional
       adapter SOLR-DA10 and up to 500 ft. cable to interface with
       computers for ease in startup and remote diagnostics.
    Long-term diagnostics and data logging is possible using
       communications software that is included in Windows' OS.
    Fault LED indicators for quick servicing and diagnostics
    Fast and easy installation with “screwless” sensor terminals
       and easy access for all other wiring
    Electrostatic discharge protected
    One HP or 20 AMP high reliability relay
    Polyester coated 16 gage rugged steel enclosure
    Model available with receptacle & power cord or with 1/2”
       conduit holes for higher current permanent wiring
    Two industrial 400°F (204°C) rated 10 K thermistors with
       +/- 1°F accuracy are included.
    Two auxiliary thermistor inputs for optional sensors that can
       be located up to 1000' away.
    Selectable overrides for low temperature shut down or freeze
       protection modes for safe operation.

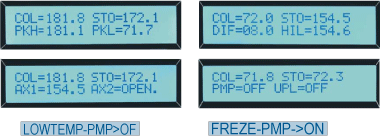

    The LCD display has 2 lines of 20 characters each. The first line permanently displays the COLLECTOR and the STORAGE temperatures. The second line can be paged by pressing the button located just below the LCD display.

    digital display


    Requires an IMC Data-Port Adapter that will allow interface to a standard computer’s serial RS232 port. The adapter can also accept a serial to USB converter to connect directly to portable computers that only have USB ports.

    Eagle adapter

    Port Adapter Model SOLR-DA10
    Send all data for graphical presentation to a computer using a PC Data RS-232 (non isolated) Port Adapter. It connects directly to the Eagle 2 WEB controller data port and permits serial PC communication at 2400 BAUD rate. Electronics are in the handle for long-distance transmission. Sample graph.

    If wireless operation is desired for short distances, Blue Tooth transceiver can also be connected. The rate at which the data is sent from the EAGLE solar controller is determined by a jumper in the controller.

    Eagle 2 Web Differential Contol Documentation

    pdf download Eagle 2 Web Solar Controller Warranty
    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
    pdf download Service and Installation Instructions
     . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
    pdf download
     Solar BTU logging and charting

    Product Manufacturer: IMC Instruments, Inc.


    HELP » Contact Customer Support
    Toll-Free help line offering product info and ordering support
    Online e-mail technical and installation support

    A complete typical solar domestic water heating system components and layout is shown below.
