 Eagle - Remote
Digital Display
Model SOLR-RD80
Receptacle for RJ-45
connector is located on the side.
LCD Master Digital Display Panel displays temperature and status indication
with 80 characters (4x20) 1/4" high. Uses very low power
consumption.
Digital display is supplied with a 3 foot CAT-5 cable that
connects directly to the Eagle controller Data-Port*.
Housing dimensions
are 4.33" (110mm) wide x 2.34" (82mm) high x 1.73" (44mm)
deep.
Product Application:
To be used with solar
water heater controls Eagle 1, 2,
D1
& D2.
Do not use with Eagle 2 WEB Controller.
 Download Digital Display Data Sheet
An IMC LCD Master digital display panel connects to the Data
Port of an IMC Eagle controller. It has an RJ-45 jack and is supplied with
a 3 foot long cable that can be substituted with a standard CAT5 cable up to 150
feet long. These ethernet cables are available at most electronic retail stores.
The display panel also has a Peak Reset button located on the side to reset
previous Storage temperature peaks.

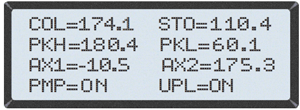

Image below displays information for Eagle 2 Differential Control. Other
controllers will display as indicated in their respective instruction
manuals.
• Collector temperature
• Storage temperature
•
Differential control setting
•
HI limit control setting
• Pump
status
• Upper limit status
• Peak HI= maximum temperature
•
Peak LO= minimum temperature
• Auxiliary
sensors 1 and 2
This Master LCD has a second page that will display the auxiliary sensor
temperatures and is updated every 2 seconds.
This product is designed for permanent installation. If it will be used as a
portable service tool, install a clear strong sheet over the display side of the
unit to protect the label window and LCD from damage.
Product Manufacturer: IMC Instruments, Inc.
* Important Notice
Do NOT attempt to connect any Ethernet
device or any other non-IMC devices to the RJ-45 DATA-PORT of any IMC Controller
or accessory. This will result in damage to the connected equipment. Connect
ONLY devices specifically designed by IMC Instruments to be connected to these
ports.
