Heatworks Tankless Smart Water Heater Model 1 The
world's first digital water heater!
The Heatworks MODEL 1 is the only water heating solution to provide endless
hot water without relying on conventional heating elements, opening a new
realm of possibilities for water heating systems.
Save time, money and energy while enjoying stable hot water
temperatures.
Tank and tankless water heaters rely on convection heating to heat water.
The same heating technology used in a toaster has been used in water heaters
since the 1800's. Innovative digital architecture makes the MODEL 1 the
first water heater in the world to use a current of electricity to heat
water. Using an array of graphite electrodes and electronic controls,
the MODEL 1 can heat water on demand, more efficiently than any other
water heating system in the world. Transitioning from convection
heating to direct resistance heating is disruptive technology that will
change the way the world heats and uses water.
Features:
• Instant, safe,
infinite hot water
• Over 99.9% energy
efficient
• Zero maintenance
costs
• No traditional failure
modes
• Significantly outlast traditional
water heaters
• Temperature control within
+/- 1°F
• Innovative water
heating
technology
Heatworks Applications:
• Stand Alone Tankless
One or more
MODEL 1s can be easily installed to replace your current water heater.
Replace your existing water heater and regain valuable square footage.
This application utilizes your existing plumbing while eliminating
"stand-by" heat losses. For maximum energy and water savings, create a
"distributed" water heating system by installing at each point of use.
• In-Line Extender
Enjoy extended hot water
usage and stable hot water temperatures. Install a MODEL 1 on the outlet side
of your existing water heating system, and it will keep the temperature
consistent as the temperature of the water in the tank decreases.
• In-Line Remote Booster
Save energy and
water that would have otherwise gone down the drain while waiting for heated
water to arrive. Place MODEL 1s at or close to a point of use in line with
your existing plumbing and eliminate the wait time for hot water. When heated
water from your existing (gas, electric, tank or tankless) system arrives, the
MODEL 1 shuts off.
• In-Line Turbo Charger
Make the most of
your existing hot water heater and plumbing system. Reduce the temperature of
your existing water heater system and the MODEL 1 will raise water
temperature on demand as you need it. The Turbocharger configuration reduces
wasted energy while storing unneeded hot water in your tank-type water
heating system.
• Solar Extender
Stable solar hot water
temperatures and extended hot water usage. Easily augment your current solar
hot water system while saving energy. Install a MODEL 1 to maintain
consistent hot water temperatures as the temperature of the water in the
system decreases.
|
Specifications |
| Description |
Electric tankless water heater that uses
direct energy transfer technology to heat water. The MODEL 1 provides reliable,
controllable, and immediate hot water either as a standalone water heater or
in conjunction with your existing water heater |
| Dimensions |
12.5" x 6.5" diameter |
| Weight |
10.5 lbs (Approx. 16 lbs
installed) |
| Shipping Dimensions -
inches |
W: 8.38 H: 16.25 L:
8.38 |
| Shipping Weight |
12 lbs |
| Domestic hot water
application |
Point of use and/or whole house water
heating. More than one unit may be required for your application. Multiple
units must be mounted in parallel, either distributed or colocated. Be sure
to check with your licensed electrician to confirm your electrical system
can support the required load |
| Power |
Maximum current draw is user selectable in 5
amp increments from 15-48 amps. Maximum power output can range from 1.65-12kW,
dependent on input voltage |
| Input voltage |
Single/split-phase operation, from 110-250
VAC (50/60 Hz), and 15 – 48 amps |
| Temperature Control |
Microprocessor thermostatic temperature
control adjusts temperature 60 times per second |
| Water Conductivity |
The water source must fall within 150 to 1500
μs of conductivity. The only way to accurately check the
conductivity of the water is to use a conductivity meter. The water
company could have this information |
| Temperature rise (at
12kW) |
41 °F @ 2.0 GPM 23 °C @ 7.6 LPM
55
°F @ 1.5 GPM 30 °C @ 5.7 LPM
82 °F @ 1.0 GPM 45 °C @ 3.8
LPM |
| Temperature outlet setpoint
range |
50 °F to 130 °F (domestic hot water
use)
10 °C to 49 °C (domestic hot water use) |
| Temperature setpoint
adjustment |
Digital user interface, +/- 1 °F/°C
adjustment |
| Water connections |
3/4" inch or 22 milimeter push-fit
connectors |
| Operating pressure |
Maximum 100 psi |
| Certification |
Certified by a Nationally Recognized Testing
Laboratory (NRTL) for safety and conformity. Visit our website for more
information regarding certification standards and approvals |
| Digital display |
Digital LCD and pushbutton user interface to
adjust temperature setpoint. The digital display can be easily switched from °F
to °C |
| Warranty |
3 year warranty, with full unit
exchange |
| Additional Features |
No annual maintenance required. Silent when
operating |
Heatworks Tankless Water Heater
Sizing
How many units do I need?

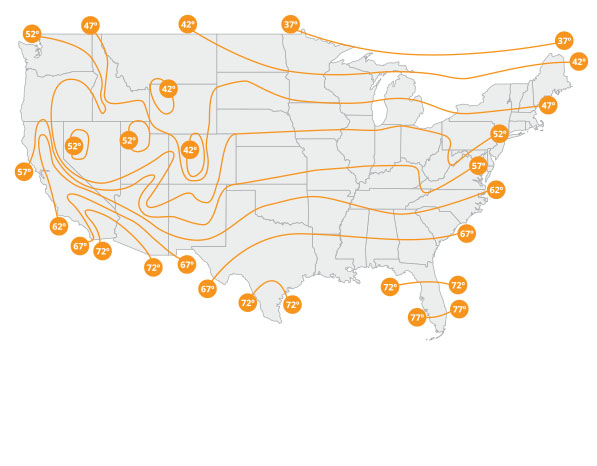

Groundwater Temperature Map - Temperature in degrees Fahrenheit
| |
Model 1 Sizing Chart |
| gpm |
Power Required (Kw) |
| 12 |
35.1 |
52.7 |
70.3 |
87.8 |
105.4 |
123 |
|
|
|
| 11 |
32.2 |
48.3 |
64.4 |
80.5 |
96.6 |
112.7 |
128.8 |
|
|
| 10 |
29.3 |
43.9 |
58.6 |
73.2 |
87.8 |
102.5 |
117.1 |
131.8 |
|
| 9 |
26.4 |
39.5 |
52.7 |
65.9 |
79.1 |
92.2 |
105.4 |
118.6 |
131.8 |
| 8 |
23.4 |
35.1 |
46.9 |
58.6 |
70.3 |
82 |
93.7 |
105.4 |
117.1 |
| 7 |
20.5 |
30.7 |
41 |
51.2 |
61.5 |
71.7 |
82 |
92.2 |
102.5 |
| 6 |
17.6 |
26.4 |
35.1 |
43.9 |
51.2 |
61.5 |
70.3 |
79.1 |
87.8 |
| 5 |
14.6 |
22 |
29.3 |
36.6 |
43.9 |
51.2 |
58.6 |
65.9 |
73.2 |
| 4 |
11.7 |
17.6 |
23.4 |
29.3 |
35.1 |
41 |
46.9 |
52.7 |
58.6 |
| 3 |
8.8 |
13.2 |
17.6 |
22 |
26.4 |
30.7 |
35.1 |
39.5 |
43.9 |
| 2.5 |
7.3 |
11 |
14.6 |
18.3 |
22 |
25.6 |
29.3 |
32.9 |
36.6 |
| 2 |
5.9 |
8.8 |
11.7 |
14.6 |
17.6 |
20.5 |
23.4 |
26.4 |
29.3 |
| 1.5 |
4.4 |
6.6 |
8.8 |
11 |
13.2 |
15.4 |
17.6 |
19.8 |
22 |
| 1 |
2.9 |
4.4 |
5.9 |
7.3 |
8.8 |
10.2 |
11.7 |
13.2 |
14.6 |
| 0.5 |
1.5 |
2.2 |
2.9 |
3.7 |
4.4 |
5.1 |
5.9 |
6.6 |
7.3 |
| 0.1 |
0.3 |
0.4 |
0.6 |
0.7 |
0.9 |
1 |
1.2 |
1.3 |
1.5 |
| |
20° |
30° |
40° |
50° |
60° |
70° |
80° |
90° |
100° |
| |
Rise In Temp (°F) |
| |
|
| |
Number of Units Needed |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
Product Manufacturer: ISI Technology
Manufacturer's Warranty: 12 Years Manufacturer
Warranty
